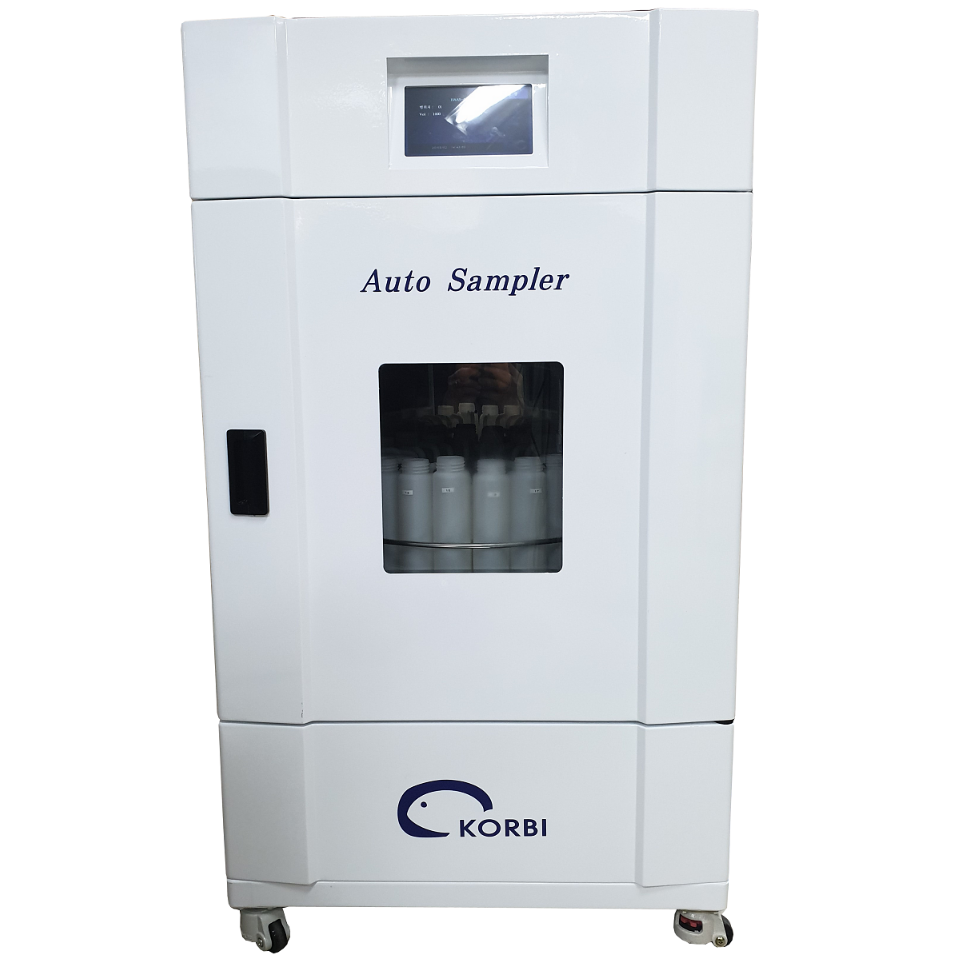

HAAS-4000
Auto sampler
The HAAS-4000 is designed for automatic sampling in river pollution incidents and Water Quality Tele-Monitoring System (TMS) operations.
It features a touch-screen interface for improved usability and allows real-time monitoring of pump flow during sampling. A front viewing window enables visual inspection of sampling status, while a built-in flow sensor ensures proper sampling verification.
Each sampling cycle collects 1 L (or 2 L), with up to 24 samples supported. The system complies with the RS-232C Water TMS standard communication protocol.
Request for
technical data
technical data
Product/Technical Inquiry
Request for quotation
Sampling volume & temperature setting
Sampling time & interval adjustable
Sampling failure alarm
Built-in flow sensor for sampling verification
Sectional self-test function
| Temperature range | 0~10℃ |
| Low temperature storage | 4±1℃ |
| Sampling speed | 100mL/min (or more) |
| Sampling mode | Manual, Auto, RS232C |
| Power | AC 220V, 60Hz |
| Material | SS41, Powder Coating |
| Weight | About 100k |
| Size | 690(W) × 740(D) × 1230(H) mm |
| Sampling bottle material | Polyethylene (PE) |
| Bottle volume | 1L, 24EA |
| Sampling volume | 100~1,000mL |
| Sampling Interval | 10~990min |
| repeatability | ±2% |
| Water collection method | Volumetric pump |
| suction height | 5m or more |
| Pump material | PP, Nylon/CRS |
| Status condition | Full(Sampling completion for all bottles), Fail(Sampling failure) |
| Displaying the screen | Collar, Touch Screen |
| output | RS-232C |
