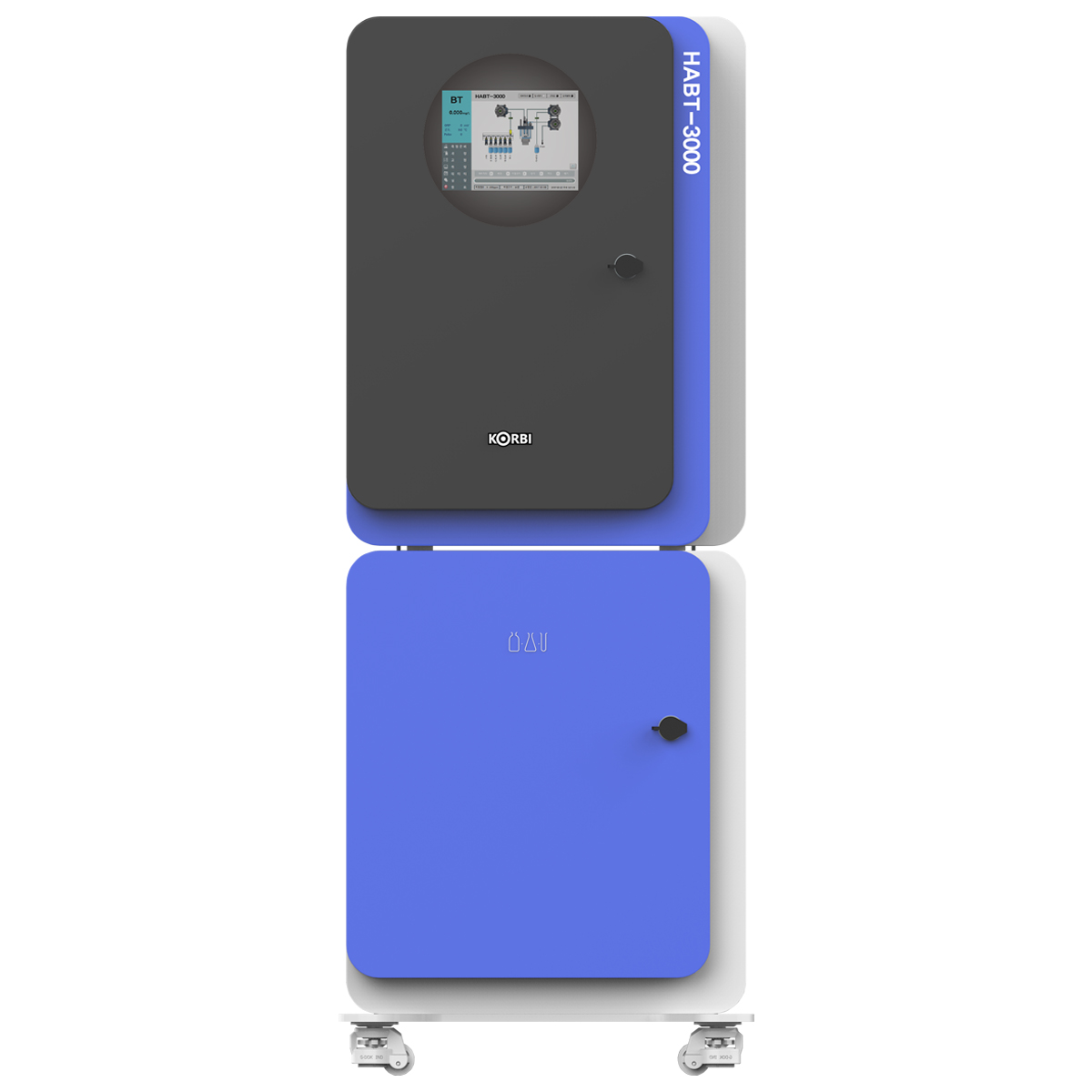

HABT-3000
TOX/BOD System
HABT-3000 is designed as a system capable of BOD measurement and toxic substance monitoring using a microbial fuel cell (MFC) as a sensor. The MFC applied in HABT-3000 utilizes indigenous mixed microorganisms, enabling BOD measurement across various organic load concentrations and compositions. In addition, it can be applied for real-time detection of diverse toxic substances present in the sample.
Request for
technical data
technical data
Product/Technical Inquiry
Request for quotation
TOX / BOD simultaneous measuremen
- MFC-based simultaneous measurement of organic matter and toxicity
- Environmentally safe, with no emission of hazardous chemicals and use of indigenous microbial populations
High acid resistance and sensitivity
- Response within 10 minutes
- Enhanced sensitivity through microbial utilization, enabling response to various hazardous substances
User-friendly operation
- No cultivation or supply of test organisms required; easy operation
- No test organism maintenance or replacement; no cultivation or staffing required
| Measurement item | Toxicity,Biochemical Oxygen Demand |
| Measurement method | MFC based on electrochemically active bacteria (EAB) |
| Sensor electrode | MFC (Microbial Fuel Cell) |
| Measurement range | -100~+100% 0–30 mg/L (adjustable within range) |
| Measurement interval | 10분 (임의 조절가능) |
| Accuracy | 0.01mg/L F.S． |
| Reproducibility | ±5% F.S. |
| Linearity | ±5% F.S. |
| OS | Windows 7 (CPU) |
| Status indicator | Equipment normal, calibration in progress, malfunction |
| Indicator | Color TFT LED 8.0″ (touchscreen) |
| Power | AC 220V, 50/60Hz |
| Data storage capacity | HDD 100G or more |
| Data output method | USB terminal adoption |
| Enclosure / Size | Steel, IP55 / 645(W) x 493(D) x 1600(H) mm |
| Automatic thermostat system | Thermostatic control at 35°C using heater with PI control system |
| Relative humidity | ≤ 95% RH |
Surface water
- Water treatment plant process control
Treated water
- Hazardous substance monitoring in water supply systems (intake & treatment plants)
- Water treatment plant process control
Wastewater
- Sewage & wastewater treatment plant process control
